Storage Temp: | -35°C~75°C | Operating Temp: | -10°C ~55°C |
---|---|---|---|
Weight: | 260 G | Size: | 94x70x25mm |
Certification: | FCC, UL, CE, TUV, CSA | Enclosure: | Metal Enclosure, No Fan |
High Light: | 24km single fiber media converter,fiber media converter multimode |

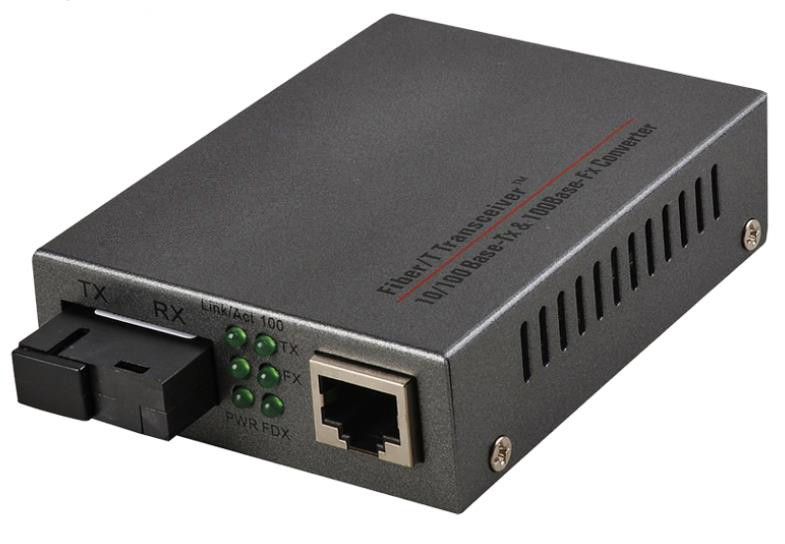

Fiber Transceiver 10/100 Base Tx 100 Base FX Adaptive Media Converter Metal Enclosure
Product Features
1. Comply with IEEE 802.3, 100Base FX and 100Base TX standards
2. Support full duplex/half duplex working mode, MDI/MIDX polarity adaptive
3. Multi-mode transmission distance: 2KM
4. Single-mode transmission distance: 25/40/60/80/120km
5. Fan-less design, improve stability and service life
6. Complete LED status indicator to facilitate network diagnosis and fault checking
7. Plug and play, can be used with 2u-14 slot rack
8. Good flow control, with self-reset function, can effectively prevent the phenomenon of crash
9. Average trouble-free working time >105000 hours
Specifications
Interface |
1 x 10/100 Base-TX, RJ-45 1 x 100 Base FX, SC/FC/ST/SFP |
Rate | 10/100mbps (adaptive) |
Indicator lights | PWR, FDX, FX LINK, TX LINK, TX LINK, TX ACT |
Power supply | 5.08mm diameter jack |
Transmission distance | 2KM, 25KM, 40KM, 60KM, 80KM, 120KM |
Electrical and Mechanical Specifications | |
Power input | Input AC 220V, output DC 5V |
Enclosure | Metal enclosure, no fan |
Overall size (W×H×D) | 94 x 70 x 25mm |
Weight | 260 g |
Installation method | Independent use/wall hanging/case plugging |
The work environment | |
Operating temperature | -10°C ~55°C |
Storage temperature | -35°C~75°C |
Relative humidity | 5-95% no condensation |
Average trouble-free working time | 105,000 HRS |
Certification | |
Safety and EMC | Meet FCC, UL, CE, TUV, CSA standards |
Order Information
Model | Functional Description | Power Supply |
TS-1101-SSA/B | 1x100 Base FX, 1x10/100 Base-TX, single mode fiber, SC, 25 km, 1310 nm/1550 nm | 5 V DC |
TS-1101-S | 1x100 Base FX, 1x10/100 Base-TX, single mode double fiber, SC, 25KM, T/Rx 1310nm | 5 V DC |
TS-1101-MSA/B | 1x100 Base FX, 1x10/100 Base-TX, multimode fiber, SC, 2 km, 1310 nm / 1550 nm | 5 V DC |
TS-1101-M | 1x100 Base FX, 1x10/100 Base-TX, multi-mode double fiber, SC, 2KM, T/R1310nm | 5 V DC |
TS-11 o1-SFP | 1x100 Base FX(SFP), 1x10/100 Base-TX | 5 V DC |
Description
TS-1101 Series 10/100Mbps Fiber Transceiver provides 1 100base-fx optical fiber interface (SC/FC/ST/SFP, single/multi-mode, single/dual-fiber optional). Single-mode products are equipped with standard transmission of 25KM 1x9 optical module.At the same time, one 10/100 base-t (X)RJ45 port is provided, which supports automatic recognition of 10Mbps and 100Mbps, full-duplex/half-duplex working mode and automatic identification of MDI/MDIX polarity.This product is a transmission product specially developed by our company for building automation, weak current engineering, network hd monitoring system and other application fields.
