Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Home ProductsLAN Cable Accessories

8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories

8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories
8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories 8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories 8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories 8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories

Large Image :  8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHs
Model Number: RJ45
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: 100 pcs in a plastic bag. 50 bags per carton
Delivery Time: 1 week
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs per week
Detailed Product Description
Name: RJ45 Connector Material: PVC Plastic
Pin Material: Copper Or Gold Coated No. Of Pin: 8
Cable Range: CAT5, CAT5E, CAT6, CAT6A Termination: Crimp
High Light:

network cable accessories

,

cable network accessories

8 Pin RJ45 Plug Connector for Solid or Stranded CAT5E CAT6 UTP FTP LAN Cable



Description



RJ45 Plugs are an ideal choice for terminating Cat5,5e,6,6A cable in network application. Compatible with both solid and stranded cable, these RJ45 plugs work with most RJ45 crimping tools to attach them to custom-length patch cables and crossover cables. These clear polycarbonate plugs feature 50-micron gold-plated contacts for optimal data signal transmission and are designed to stand up to everyday use.



Main Feature



  • RJ45 plugs for solid conductor 4-pair round cable

  • For Lan Cable CAT5 CAT5 CAT6 CAT6A

  • Shield cable(FTP) and unchield cable(UTP) optional

  • 50 micron gold contacts

  • Can be used for solid or stranded conductor wire

  • For use with Cat5e Solid ( or Stranded ) Conductor Round 4-pair cable

  • Works with most RJ45 Crimp Tools

  • 50 Micron Gold Contacts



Specification



Electrical Test

1..Dielectric Withstanding Voltage test 1000V/DC

2. Insulation Resistance: >500MΩ

3. Contact Resistance:<20MΩ

Gold Plate Inspection

1. TYPE II (99% pure gold minimum)

2. Grade C+(KNOOP HARDNESS RANGE 130~250)

3. Class 1(50 microinches minimum thickness)

Mechanical

1. Cable-to-plug tensile strength-20LBs(89N) min.

2. Durability:2000 mating cycles.

Material & Finish

1. Housing Material: Polycarbonate(PC.)

2. Contact blade: Phosphor Bronze

a. High strength copper alloy

b.100 microinches nickel under plated & Gold selected.

Operating Temperature:-40 ℃~+125℃

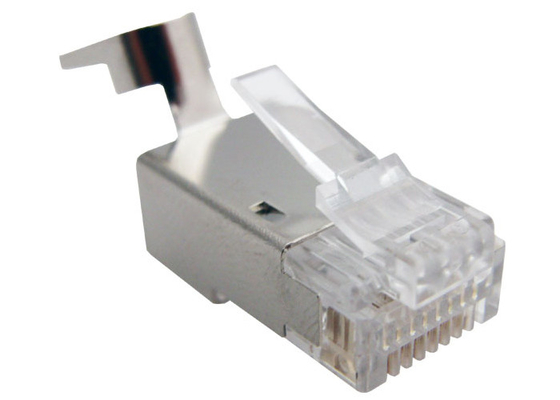

Product Picture



8 Pin Shielded Rj45 Connector , Lan Cable Connector Cable Network Accessories 0
