Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size

Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size
Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size

Large Image :  Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE RoHs
Model Number: Schuko-PDU
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 1 pcs per box, 24 boxes per carton
Delivery Time: 1 week
Payment Terms: T/T, L/C
Supply Ability: 1000 Pcs/Day
Detailed Product Description
Amps: 16A Volt: AC 250V
Power: 3500W Frequency: 50 Hz
Output Type: Schuko Cable: 3m
High Light:

data center power distribution unit

,

remote power distribution unit

Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19" 1U



Introduction



Euro Schuko Socket Rack PDUs provide reliable rack power distribution via a single input with multiple schucko sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.



In this particular range each socket is 'Schuko' style, manufactured in accordance with the DIN49441 standard, the 2 metre input lead is terminated with a 16AMP rated 2 time circular pin DIN49441 plug top.



Our 19 inch rack mountable PDU has a 1U profile and is made from aluminum. With 10(Max.42) Euro (schuko style) sockets. The PDU has a 1.8 meter cable and also comes with on and off switch along with a switch cover for extra safety.



In the vertical configuration, the maximum PDU height is 2200 mm and the maximum number of C13 outlets is 42.



Features

  • Horizontal 1.5U and vertical option
  • Up to 12 sockets per unit(Max.42 vertical)
  • Both vertical and horizontal mounting options
  • 250 volt AC, 50/60Hz Rating
  • French / Benelux type E sockets
  • German Schuko type F sockets
  • Shrouded switch with switch cover
  • 3-metre 1.5mm lead to universal Schuko plug (French and German as above)



Specifications



Number of sockets 8(4-42 optional)
Sockets type schuko female
Mounting direction Horizontal/Vertical
Compatibility rack cabinet 19''
Units 1
Maximum load (W) 3,500 Watt
output current 16 A
Voltage AC 230 V
Frequency 50 Hz
Cable length 3 m
Alimentation cable H05VV-F 3G 1.5 mm²
Button Light on/off button(optional)
Temperature 0 ~ 45 Celsius degree
Humidity 0% ~ 90%

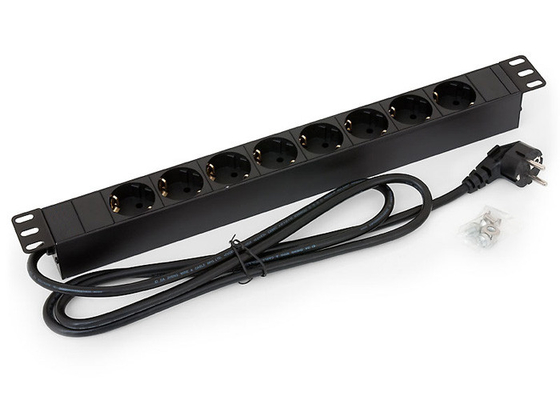

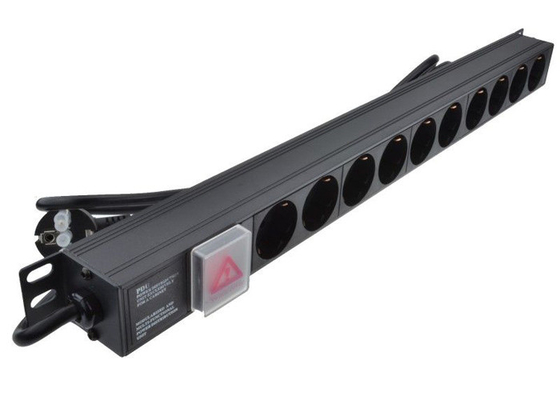

Product Picture



Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size 0
