Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment

Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment
Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment

Large Image :  Swing Out Outdoor Data Cabinet , Side Panels In Wall Network Cabinet For Sensitive Datacom Equipment

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Wall Mount Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: within 10 days of payment
Payment Terms: T/T, L/C
Supply Ability: 1000 pieces per month
Detailed Product Description
Warranty: 1 Year Oem Server: Accept
Package: Carton Material: Cold-rolled Steel
Degree Of Protection: Network Cabinet IP20 Front Door: Tempered Glass / Mesh Door
High Light:

telecom equipment cabinet

,

locking server cabinet

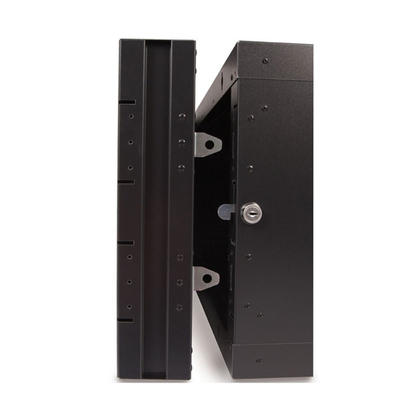

Swing Out Wall Mount Enclosures with Side Panels for Sensitive Datacom Equipment



Overview



The BGJG series of swing out wall-mount cabinets are perfect for people who need access to the back of their rack mount equipment on a regular basis. This unique mounting system makes installation a breeze. Not only will this cabinet swing out 90 degrees from the wall but it offers removable and lockable side panels allowing you to cable this cabinet in no time. This cabinet comes with 2 sets of adjustable rails, 4 keys. This cabinet offers 4 cables slots, 2 in the top and 2 in the bottom making CAT5 and Fiber installations a breeze.



Features



· Hinged cabinet swings out 90° from the wall to provide a comfortable working environment for installing and managing cables, and provides accessibility to the rear side of equipment without removing or adjusting them first

· Removable/lockable side panels provide the installer with a better degree of range for installing new equipment or adjusting preexisting hardware

· Features two sets of rails that are adjustable in 1” increments for properly securing delicate and expensive datacom equipment

· Top, bottom and rear fan kit knockouts ensure easy fan installation for additional cooling, along with top and bottom venting on front and sides

· Includes 2 top and 2 bottom removable cable slots for easy Cat5e or fiber optic cable routing and installation

· Hinged glass door provides a clear visual of installed equipment and includes a preinstalled lock and key to deter unwanted access and tampering

· Rails are designed with cage nut style mounting for ensuring reliable and secure installation of equipment and hardware

· Maximum Weight Capacity: 150 lbs.

· 1 year manufacturer warranty

· 2 Sets of adjustable mounting rails (adjusting in 1 increments)

· Removable/lockable side panels · Cage nut style mounting rails

· Top and Bottom removable cable slots

· Glass front door with built in lock

· 90 Degree swing out from the wall

· Maximum Weight Capacity Specifications

· Depth - 27 Inches (Maximum Mounting Depth 21.5 Inches)

· Width - 23.75 inches

· Rail Width - 19 inch EIA Compliant

· Height - 42.75 Inches



Specifications



Maximum Mounting Depth: 21.5" Optimal
Material: Rail: 0.09" Cold Rolled Steel
Top: 18 Gauge Steel
Side: 16 Gauge Steel
Maximum Weight Capacity: 150 lbs
