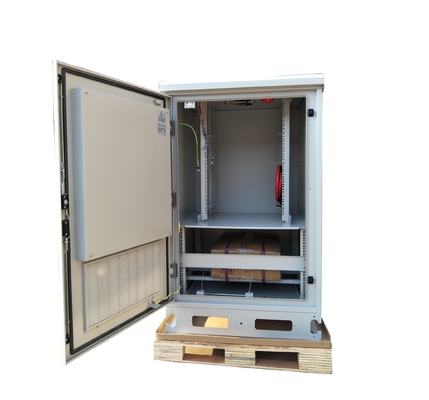

SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use

SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use
SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use

Large Image :  SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Input Voltage: -48V Internal Capacity: 19" RACK
Operation Humidity: 5%~100% Battery Space: 8U (100AH)
Operating Temperature: -40℃~+55℃ Panel Material: 304 Stainless Steel Cabinet
Installation Mode: On Ground\Wall Mounted\Pole Mounted Weight: ≤80kg (without Rectifier Module And Battery)
High Light:

wall mount relay rack

,

enclosed server rack

IP55 Telecom Cabinet SNMP Function Heat Exchange for Computer Room Outdoor Use



Brief Information



1. Computer room heat exchanger
2. Cooling capacity:1200W/k
3. Air volume:6000m3/h
4. CE and RoHs certification

product name: outdoor network cabinet

1. Computer room heat exchanger
2. Cooling capacity:1200W/k
3. Air volume:6000m3/h
4. CE and RoHs certification



Introduction



HEU-S Series Base Station cabinet air exchaner system is specially design for mobile, telecom stations or computer room, etc, mainly used to eliminate the heat in the base station. The outdoor cold air after the purification, directly introduce into the equipment, then exchange the heat with exhaust air through the sensible heat recovery unit, expel heat from the equipment.

So as to cool the equipment, reduce the consumption of energy, and not only provide an ideal temperature and humidity environment for the cabinet air exchanger system, but also separate the dust and moisture from the equipment, greatly extend the service life of electronics parts and improve the system reliability.



Feature



Energy Saving

It real-time control monitoring the inside and outside temperature ,when the outside temperature is lower to a certain extent, the equipment will begin to work, remove the inside heat to outside, so as to reduce the air-conditioner working time and save the energy.

Water And Dust Proof

Enclosed air circuit cooling system , completely isolate the inside and outside air, effectively avoid air contamination from outside.

Several Working Models and Standard RS485/RS232 Intelligent Control



Function



Setting the parameter for automatic protection, when the unit power outage, computer can record the parameter and outage information, after the power on, it will work again follow the status before the power outage ,it have the time delay function, to avoid power flash affect the unit or automatic trip.
Air-conditioner Troubleshooting

When base station air conditioner goes wrong,the equipment remove the inner heat to outside in time, make sure the electron devices working well.

Protection Warning Function and Stable performance

High quality accessories and less moving parts, so as to reduce the machine fault and easy to maintenance.



Specifications



Internal capacity 19" RACK
Weight ≤80kg (without rectifier module and battery)
Panel material 304 stainless steel cabinet
Installation mode On groundWall mountedPole mounted
Input voltage -48V
Operating temperature -40℃~+55℃
Operation humidity 5%~100%
Battery space 8U (100AH)



SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use 0

SNMP Function Heat Exchange Wall Mount Server Rack For Computer Room Outdoor Use 1
