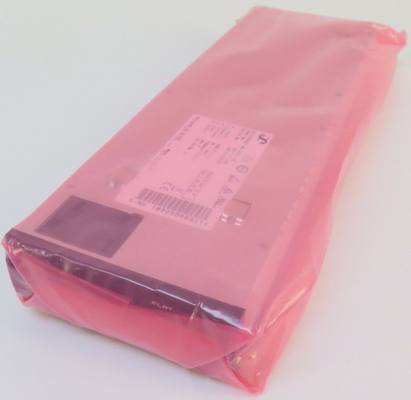

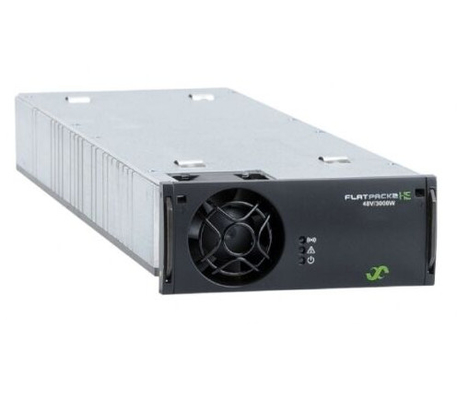

HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105

HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105
HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105 HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105 HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105 HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105

Large Image :  HE Rectifier Module 5G Network Equipment 53.5V DC Voltage 48 / 3000 HE 241119.105

Product Details:
Place of Origin: China
Brand Name: ELTEK
Certification: CE, RoHS
Model Number: Flatpack2 48/3000 HE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Part No.: 241119.105 Efficiency: >95.5% At 25~75% Load
Output Power: 3000 W At Nominal Input Maximum Current: 62.5 Amps At 48V DC And Nominal
DC Output Voltage: 53.5V DC (adj. Range: 43.5-58.0V DC) AC Input Voltage: 85-300V AC (Nominal 185 – 275V AC)
High Light:

Eltek Rectifier Module 53.5V DC

,

Eltek Rectifier Module 48V 3000W

,

241119.105

Flatpack2 Eltek Valere 48V 3000W HE Rectifier Module 48/3000 HE 241119.105



Technical Specification:


AC Input:
Voltage :85-300V AC (Nominal 176 – 275V AC)
Frequency :45 to 66Hz
DC Output:
Voltage: 53.5V DC (adj. range: 43.5-58.0V DC)
Output Power : 3000 W at nominal input
Maximum Current: 62.5 Amps at 48 VDC and nominal
Output Protection: Overvoltage shutdown, Short circuit proof, High temperature protection
Efficiency:>
>95.5% at 25~75% load
Operating Temp.:-40 to +75°C (-40 to +158°F)
MTBF :> 350, 000 hours


Mechnical Specification:


Dimensions- 109 x 41.5 x 327mm (wxhxd)
Weight- 1.95 kg (4.31lbs)


Ordering Information:


Part No.: 241115.105 Flatpack2 Rectifier Module 48/3000
