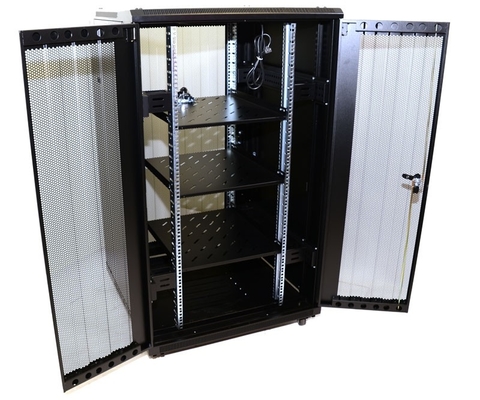

Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size

Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size
Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size

Large Image :  Floor Standing Network Equipment Rack For Data Center Dual Vented Doors 32U Size

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Size: 19 Inch,32U Color: Black
Depth: 800mm Width: 800mm
Type: Floor Standing Material: SPCC Cold Rolled Steel
High Light:

open frame server rack

,

enclosed server rack

32U Floor Standing Network Rack Data Center Cabinet Dual Vented Doors 800x800mm



DESCRIPTION



Telecommunication rack cabinet 32U NCB-NA series have 800mm width and depth. It is perfect solution for budget-built network installations, broadcasting systems, and automatic controls.
Front door (2.0mm) and back door are full metal and 1.2mm thick. Both of these have locks. Side panels can have locks as well (available as option).

Robust and solid, combined with aesthetic looks allow any placement, be it server room, small office, or even home.
Full range of accessories are available to expand installation.
Cabinet color is black RAL9004.



SPECIFICATION



Nominal height 32U
Mounting depth 800mm
Colour Black RAL9004
Maximum load capacity 800kg
Protection class IP20
Front doors Glass with lock
Back doors Full steel with lock
Side panels Full steel dismounted on latches with a lock assembly option
Cable ducts 2 pcs - in the ceiling and floor
Cable organizer No
Assembly kit 20 pcs
Frame thickness 1.2mm
Mounting rail thickness 2.0mm
Door thickness (steel) 1.2mm
Glass thickness 5.0mm
Side panel thickness 1.2mm
Base thickness 1.2mm
Cover thickness 1.2mm
Additional information

- Adjustable feet and transport wheels of high durability
- Cold-rolled steel
- Surface finish: degreasing, etching, phosphating, powder coating
- Protection against rust, oxidation, scratches, corrosion
- Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
- Compatible with metric ETSI and 19-inch international standards
Number of cartons: 3
Dimensions of cartons

1. 64x16x107cm
2. 75x10x151cm
3. 62x25,5x153cm

Weight of cartons

1. 29kg
2. 52kg
3. 20kg



Main Parts



S/N

Specification

Quantity

Unit

Material

Surface Finish

1

Frame

2

Piece

SPCC cold rolled steel t1.0

Powder coated

2

Side panel

2

Piece

SPCC cold rolled steel t1.0

Powder coated

3

Top cover

1

Piece

SPCC cold rolled steel t1.2

Powder coated

4

Bottom panel

1

Piece

SPCC cold rolled steel t1.2

Powder coated

5

Mounting profile

4

Piece

SPCC cold rolled steel t2.0

Zinc plated

6

Mounting rail

4/6

Piece

SPCC cold rolled steel t1.2

Powder coated

7

Front door

1

Piece

5MM tempered glass door/SPCC t1.2 mesh door

Powder coated

8

Rear door

1

Piece

Single open mesh vented door t1.2

Powder coated

9

Casters

4

Piece





10

Leveling feet

4

Piece





11

Lock with key

2

Piece





12

M6 Square nut

30

Piece

Steel

Color Zinc

13

M6 B-head screw

30

Piece

Steel

Color Zinc

14

Allen wrench

1

Piece

Steel

Color Zinc



32u-network-server-rack-dual-vented-rear-doors-2
