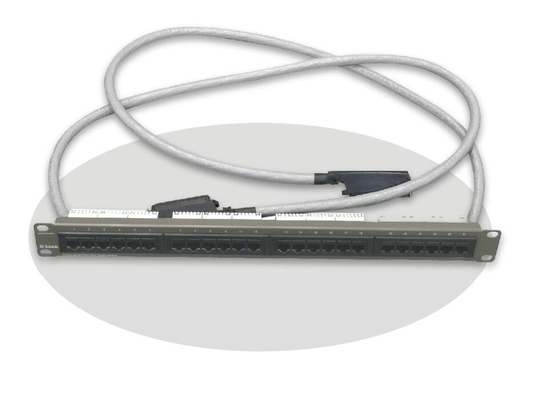

Ethernet 24 Port Network Patch Panel For Chassis Switch RJ-45 Connectors Flow Control

Ethernet 24 Port Network Patch Panel For Chassis Switch RJ-45 Connectors Flow Control
Ethernet 24 Port Network Patch Panel For Chassis Switch RJ-45 Connectors Flow Control

Large Image :  Ethernet 24 Port Network Patch Panel For Chassis Switch RJ-45 Connectors Flow Control

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: PXJ0902
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiable
Packaging Details: carton package
Delivery Time: within 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs/month
Detailed Product Description
AC Input: None Power Consumption: None
Operating Temperature: 0 To 40°C Storage Temperature: -25 To 55°C
Topology: Star Number Of Ports: 24 10/100BASE-TX Ethernet Ports
Network Cable: Ethernet Cat. 5 Cable (max. 100 M) Connectors: - 2 RJ-21 Connectors, Each Supports 12 Ethernet Connections
High Light:

ethernet patch panel

,

rack mount patch panel



24-Port Ethernet Patch Panel For Chassis Switch RJ-45 Connectors Flow Control



Introduction



The product is a 24-port Ethernet patch panel for chassis switch. This patch panel provides 2 sets of RJ-21 to RJ-45 connectors, each supporting 12 connections. The patch panel is designed to work with the 24-port 10/100BASE-TX DES6510 module, also equipped with RJ-21 connectors. System integrator wishing to set up a high port density network can install the DES-6510 modules in the DES-6500 chassis together with the patch panels.



Key Features



Patch panel for 24 Ethernet ports

Equipped with 2 RJ-21 connectors, 24 RJ-45 connectors

Works with 24-port DES-6510 Ethernet module for DES-6500 chassis switch

Fully complies with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX



Standards



- IEEE 802.3 10BASE-T

- IEEE 802.3u 100BASE-TX

- ANSI/IEEE 802.3 NWay auto-negotiation

- IEEE 802.3x Flow Control



Specifications



Topology Star
Network Cable Ethernet Cat. 5 cable (max. 100 m)
Number of Ports 24 10/100BASE-TX Ethernet ports
Connectors

- 2 RJ-21 connectors, each supports 12 Ethernet connections

- 24 RJ-45 connectors

AC Input None
Power Consumption None
Operating Temperature 0 to 40°C
Storage Temperature -25 to 55°C
Humidity 5% to 95% RH, non-condensing
Dimensions 485 mm x 50 mm x 45 mm
EMI

- FCC Class A

- CE

Box Includes

- 24-port Ethernet patch panel

- Quick Installation Guide
