42U 19 Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing

China Wuhan Unique Mechanical And Electrical Equipment Co.,LTD. certification
These guys are really professional at trading as well as networking stuffs, saved me a lot of energy and money.

—— John Karanja

Nice working with you, flawless product, considering the next deal.

—— Michael Morrison

I'm Online Chat Now

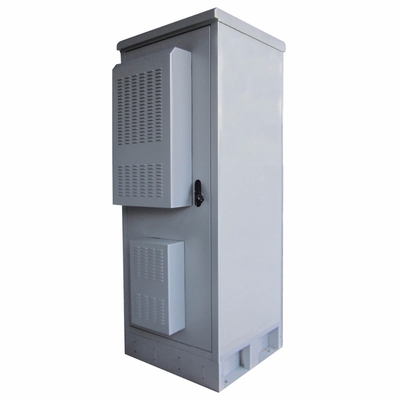

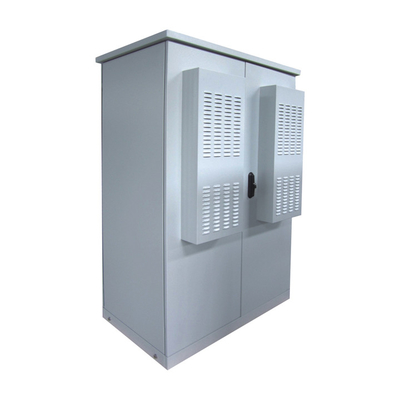

42U 19 Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing

42U 19 Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing
42U 19 Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing 42U 19 Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing

Large Image :  42U 19 Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing

Product Details:
Place of Origin: China
Brand Name: Unique-Tel
Certification: CE, RoHS
Model Number: Network Cabinet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: carton box
Delivery Time: within 10 days of payment
Payment Terms: L/C, T/T
Supply Ability: 1000 sets/month
Detailed Product Description
Color: Black Thickness: 2.0mm
OEM Server: Available Width: 600mm/800mm
Product Name: Network Cabinet Loading Capacity: 800kgs(=1763lbs)
Height: 22U/32U/37U/42U Depth: 600/800/900/1000mm
Application: Server Room, Industrial Keyword: 22u Outdoor 19inch Ddf Network Cabinet
High Light:

wall mount relay rack

,

enclosed server rack

42U 19Inch Outdoor Indoor Network Server Cabinet 600x960 Server Rack Flat Packing



Features:



1. The frame is made of nine or fourteen folds structure and welded by special 3-Tees.The whole configuration is firmed and the static load is 1000Kgs.

2. High density vented single front door and double section rear door make the vented area no less than 65% of the door area,the exquisite appearance.The front door can choose international fashion color of tempered glass.

3. The side door can be installed and uninstalled quickly which make the working conveniently.

4. The cabinet can be installed castors and adjustable feet at one time which make the moving and fixing easy.

5. The door hinge is interchangeable,top cable entry hole with rubber cover.

6. The depth is adjustable(take 25MM as unit),the height of capacity is adjustable(take 1U as unit).

7. Optional accessories.

8. We can manufacture the cabinet according to the customer special requirements also.

9. 8 heights-12U,17U,22U,27U,32U,37U,42U,47U.

10. 3 depth options-600,800 and 1000mm.

11. Flexible packing methods allows for convenient stocking and end user delivery.

12. Multiple sizes available.

13. Customization requests welcome.



Standard and Material:



Comply with

ANSI/EIA; RS-310-D; IEC297-2; DIN41491:PART1; DIN41494:PART7; GB/T3047.2-92 standard; compatible with ETSI standard.

Surface treatment:Degreasing, phosphating, powder coating.

Material: SPCC cold rolled steel or EG steel.

Thickness: Mounting angel is 2.0mm; the others: 1.2-1.5mm

Color: Body color: RAL9004(black); RAL7035(grey)



Specifications:



1. 42U nine fold structure network cabinet.

2. Castor installed.

3. Good apperance.

4. Good reception of the end user.

Product Name Network Cabinet
Color Black
Width 600mm/800mm
Depth 600/800/900/1000mm
Height 22U/32U/37U/42U
Thickness 2.0mm
Loading Capacity 800kgs(=1763lbs)
OEM Server Available
Application Server Room, Industrial
Keyword 22u outdoor 19inch ddf network cabinet
